Photographs of my 1:12 Scale Model Extrusion Press

extrusion press
Home


Photos
Documents
Drawings
Photos of Model
Press Specification
Production Cycle
News Cuttings
Acknowledgements

Wanted
Previous Models
Links to youtube
Stirling Engine

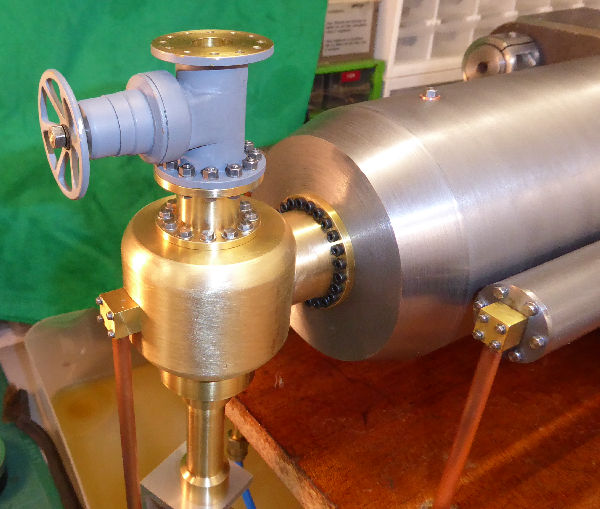

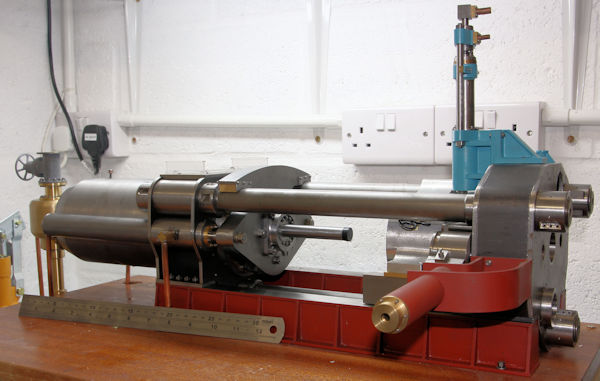

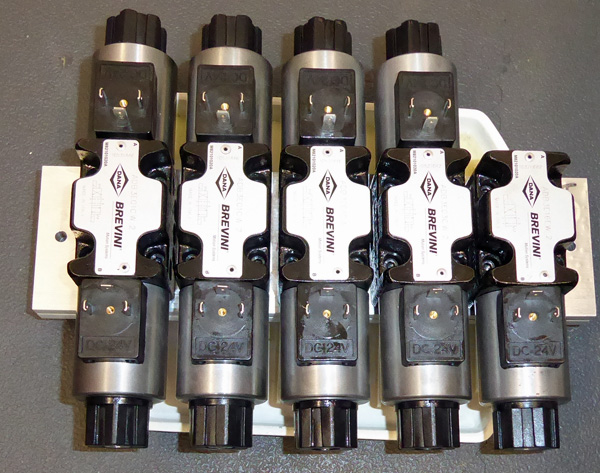

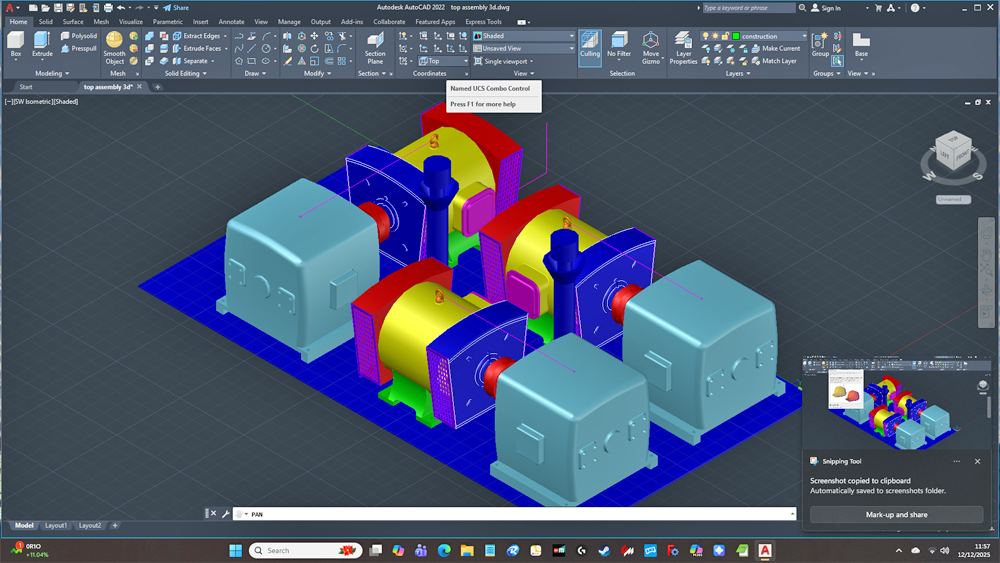

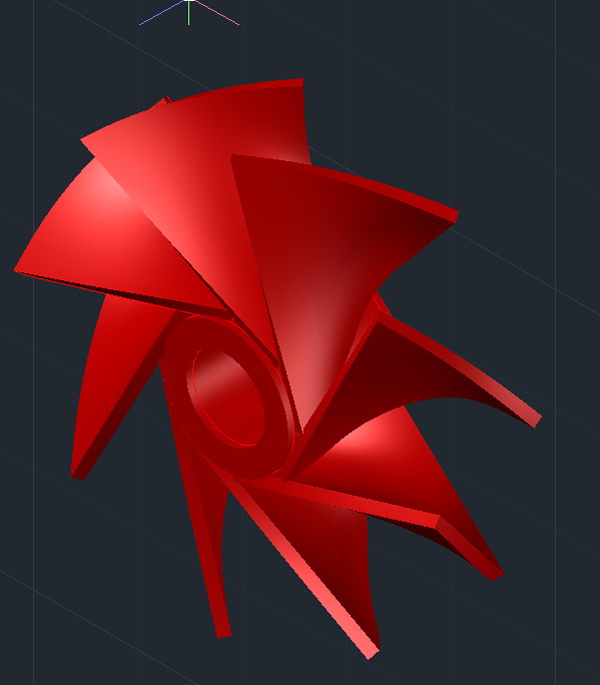

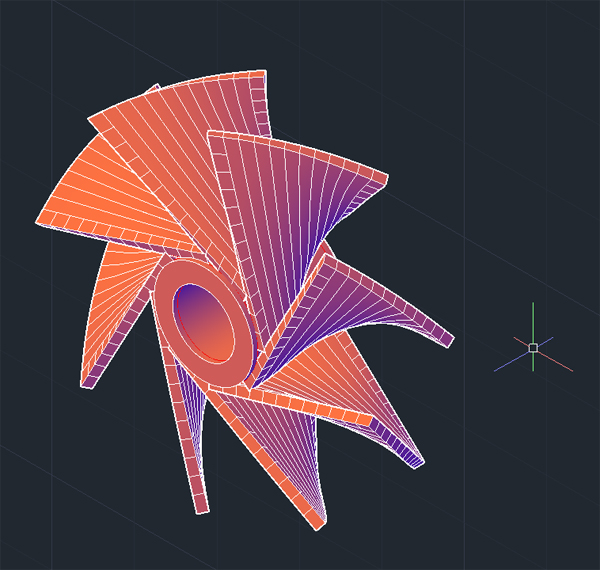

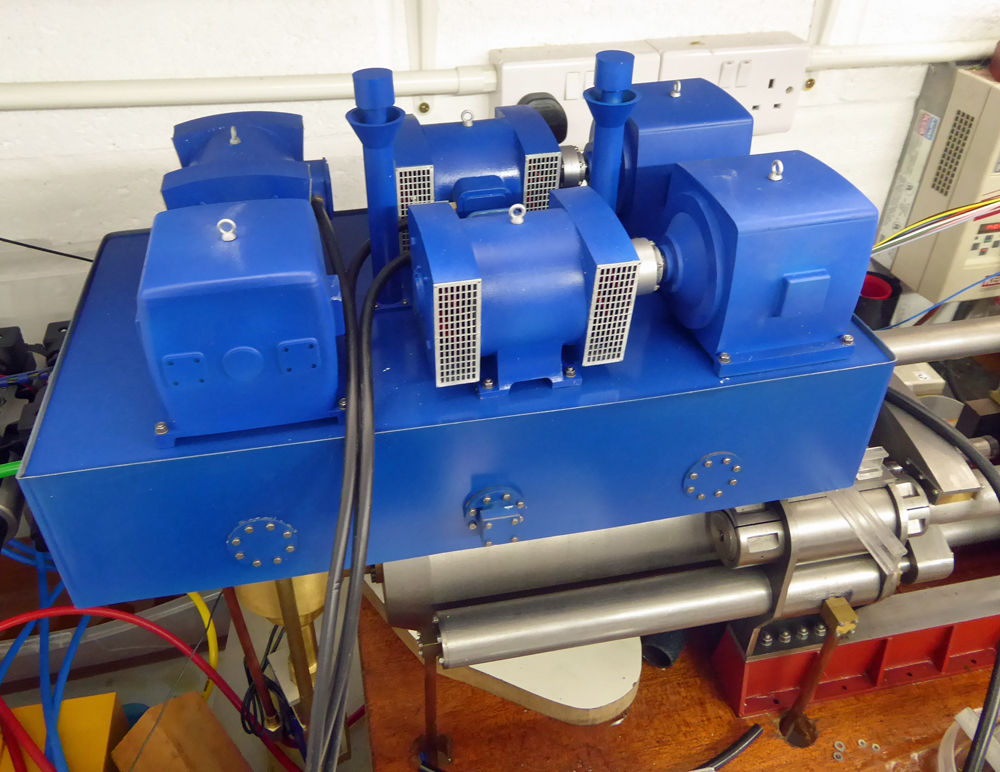

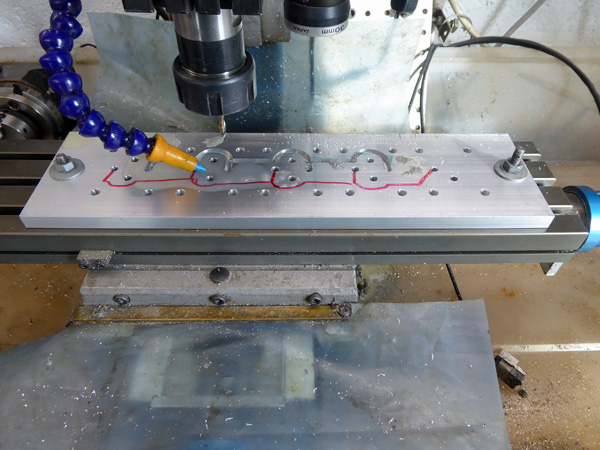

02-12-18 Dump valve and side rams fully working

extrusion press

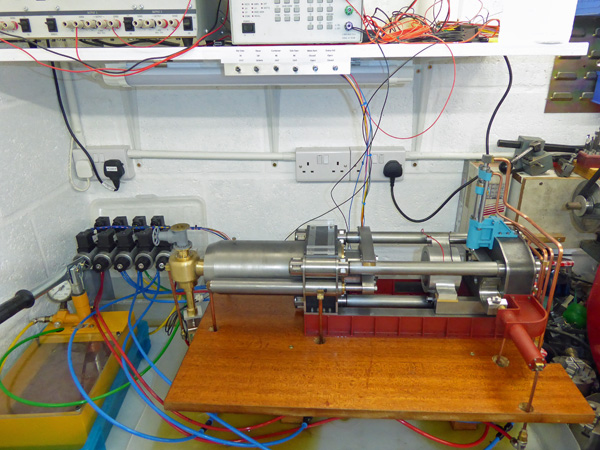

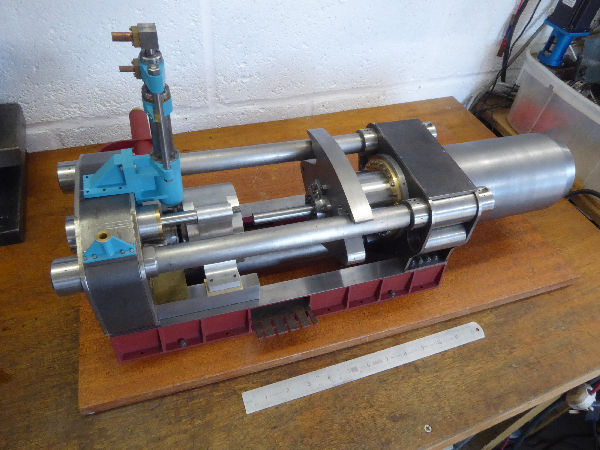

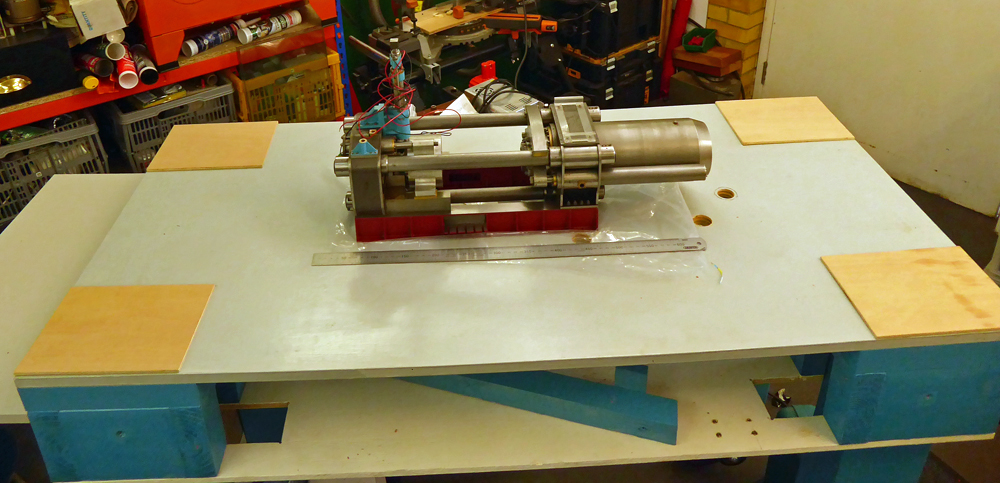

28-06-18 Starting to look like an extrusion press

extrusion press

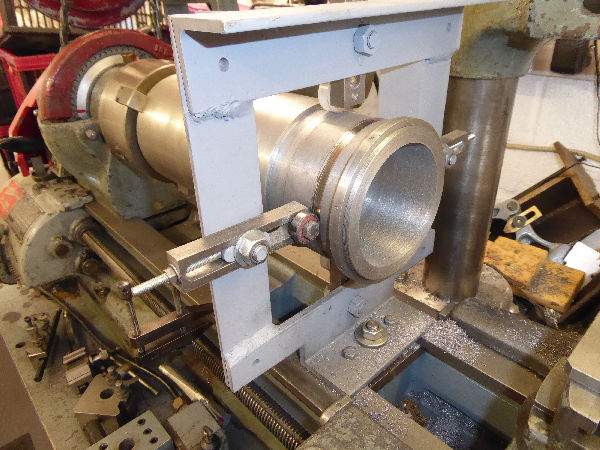

10-06-18 main cylinder

extrusion press

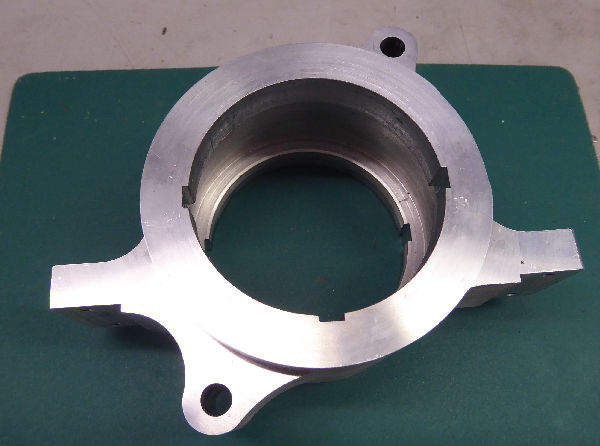

12-08-16 container housing

extrusion press

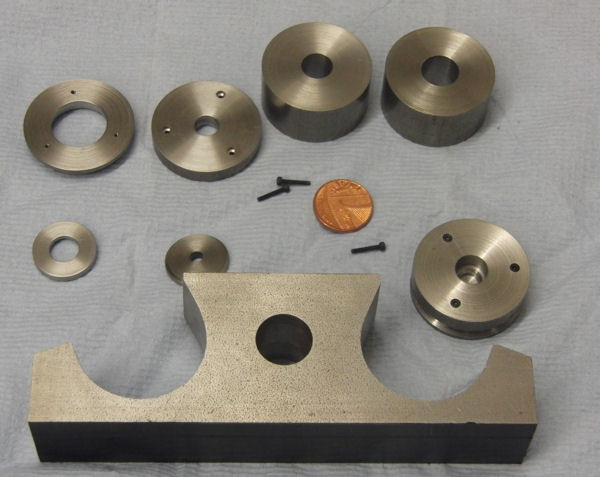

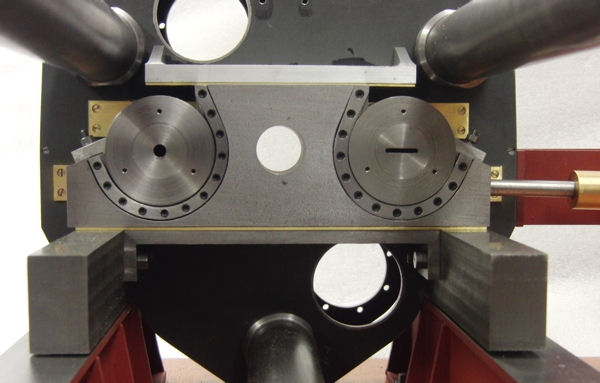

18-05-15 die slide complete with dies

extrusion press

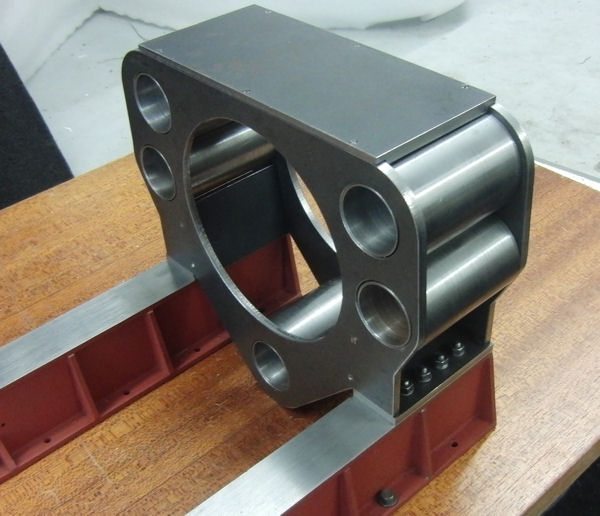

18-05-15 complete main frame

extrusion press

28-02-15 fitted with 12 1.6mm cap head screws

extrusion press

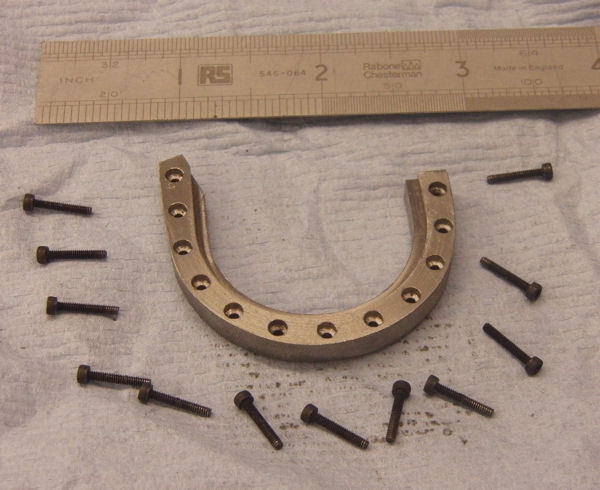

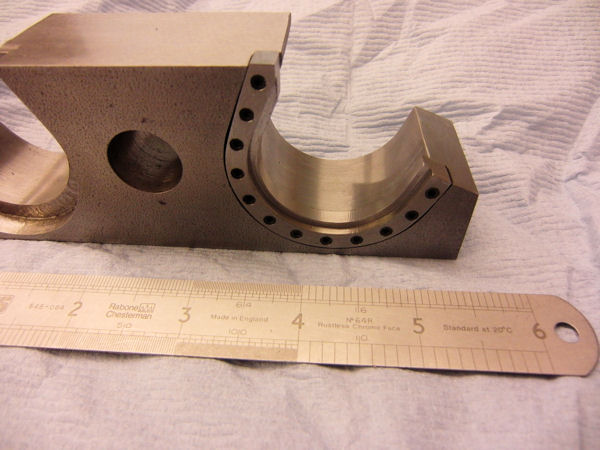

28-02-15 After some experimental errors and lots of learning. A finished die retainer

extrusion press

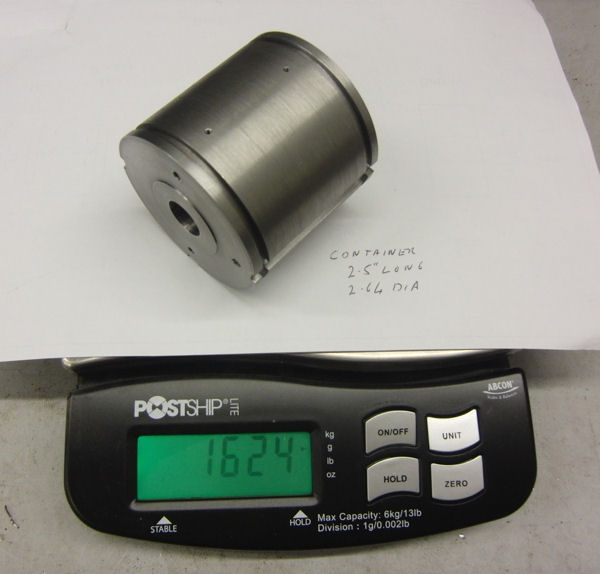

23-02-15 Container finished Full size weight would be 1.624Kg x12x12x12=2806.3Kg

extrusion press

05-02-15 Die Slide and Die holders the screws are 1.6mm cap head

extrusion press

24-11-14 Trial Assembly 2 With But Shear Die Slide Cylinder and Container Cylinders

extrusion press

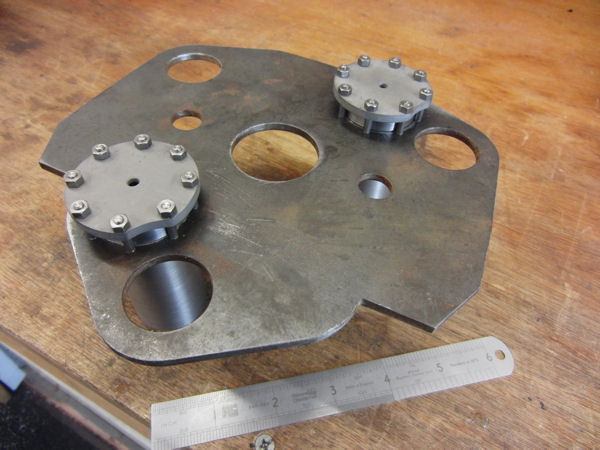

01-08-14 Container Cylinders

extrusion press

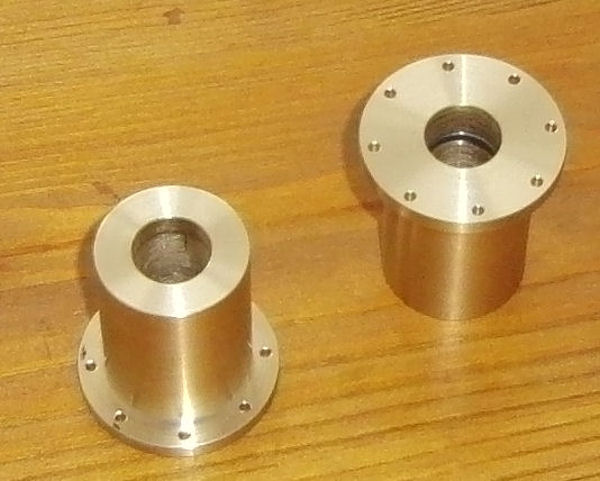

01-08-14 Container Bearings

extrusion press

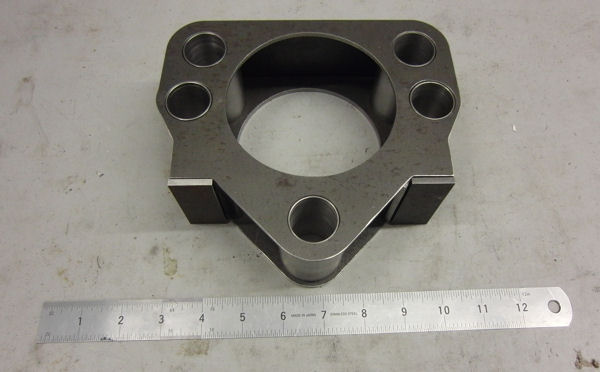

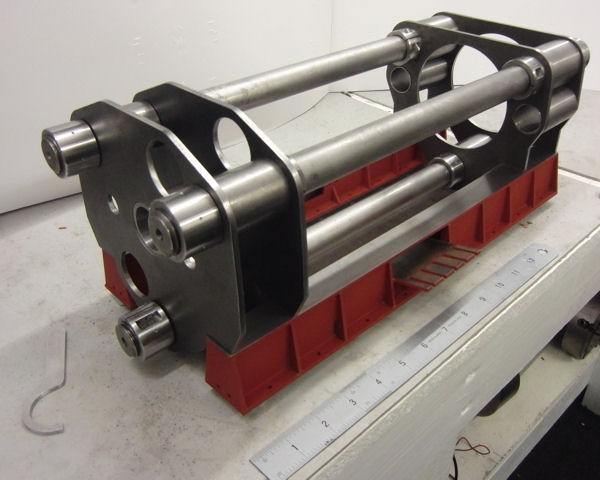

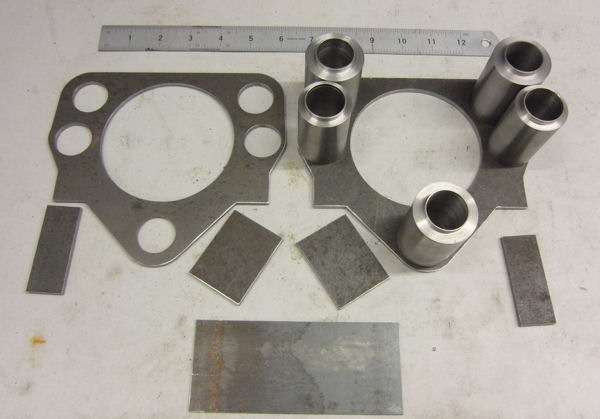

06-04-14 Main Frame to Assemble

extrusion press

06-04-14 Main Frame to Assemble

extrusion press

06-04-14 Main Frame to assemble

extrusion press

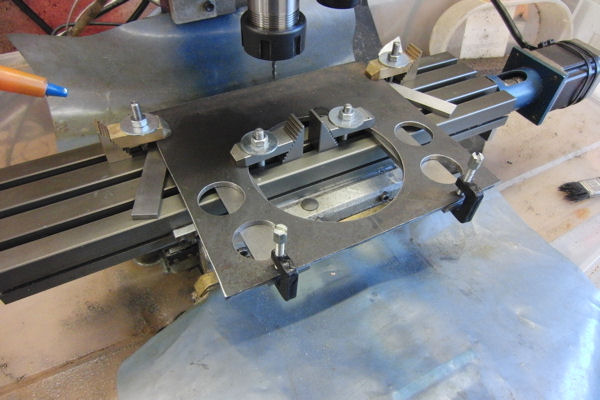

06-04-14 Main Frame Milling

extrusion press

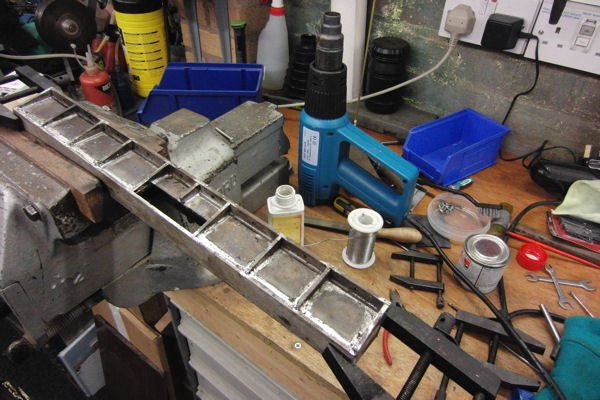

23-02-14 frame assembly 16 inches long

extrusion press

11-02-14 L/H frame assembly

extrusion press

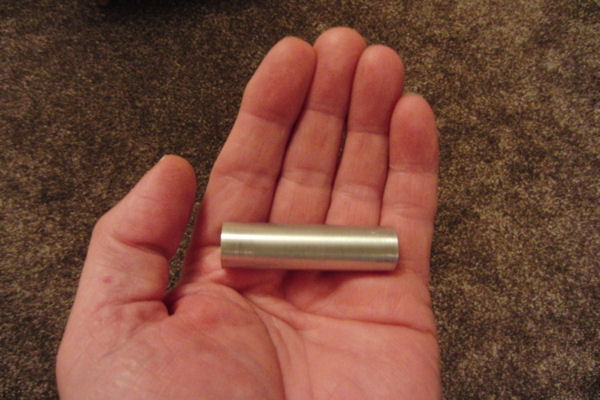

27-12-13 An easy bit to finish the evening "well it is Christmas" 1:12 Billet 0.5833 dia x 2.125 long

extrusion press

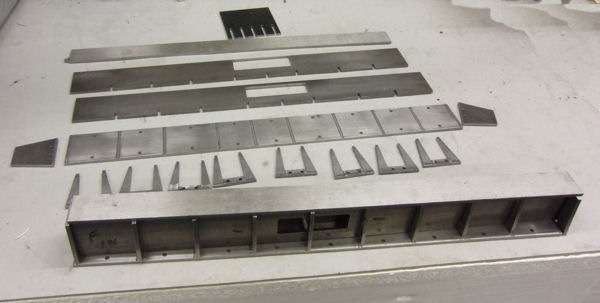

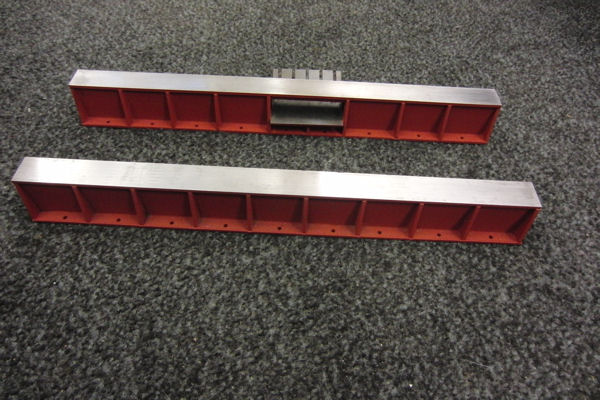

26-12-13 Main left and right BackBone 16 inches long

extrusion press

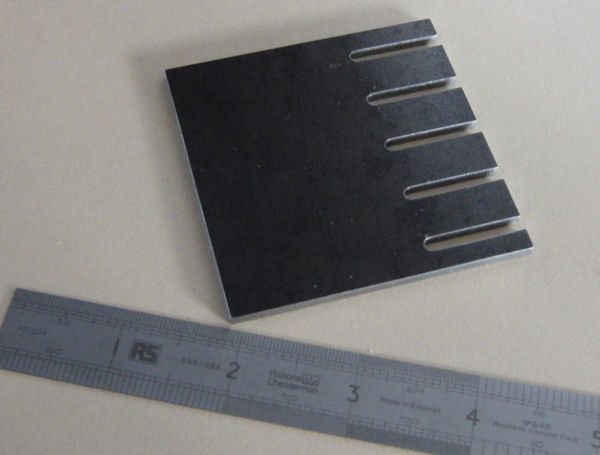

27-04-13 Billet loader Ramp

extrusion press

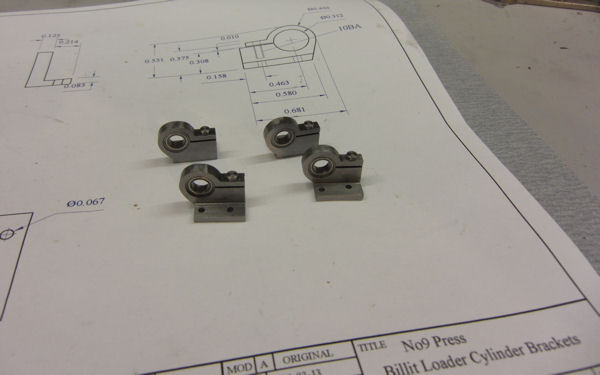

13-04-13 Billet loader bearing brackets

extrusion press

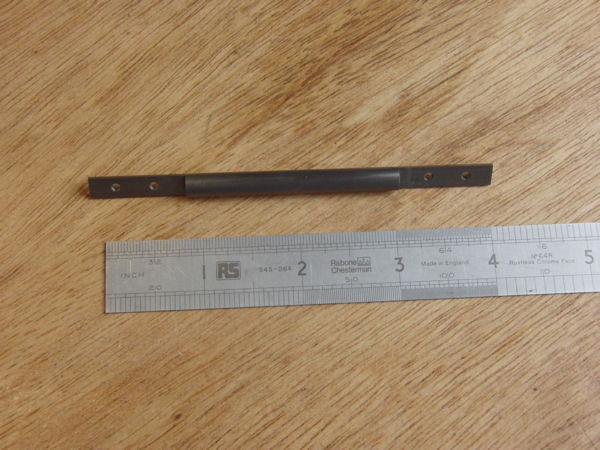

02-10-12 Billet loader pivot

extrusion press

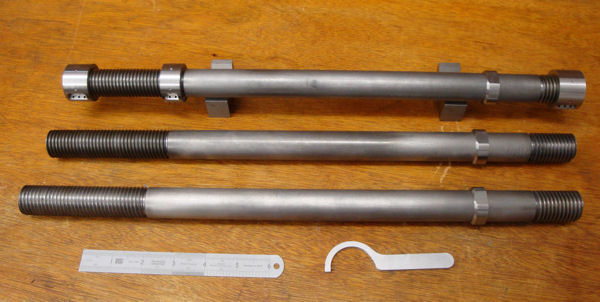

19-06-11 The three tie bars one with nuts fitted and their C spanner

extrusion press

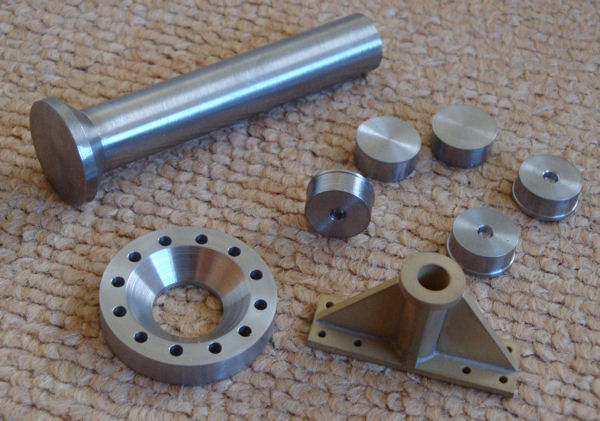

02-05-11 Main ram and holder 5 pads and the control desk bracket

extrusion press

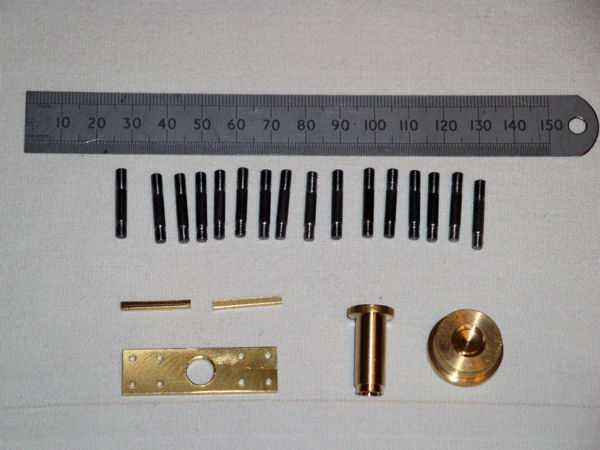

14-03-11 Some of the smaller bits

extrusion press

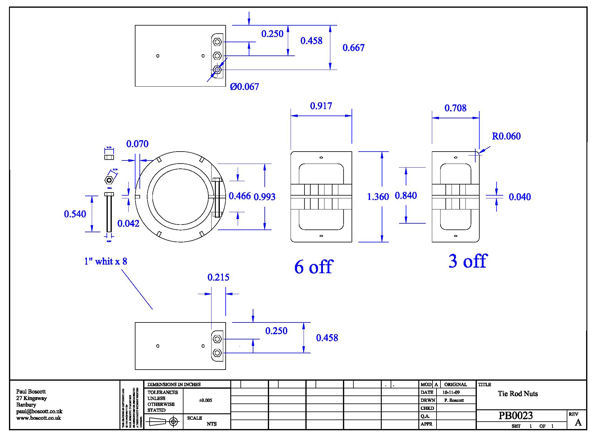

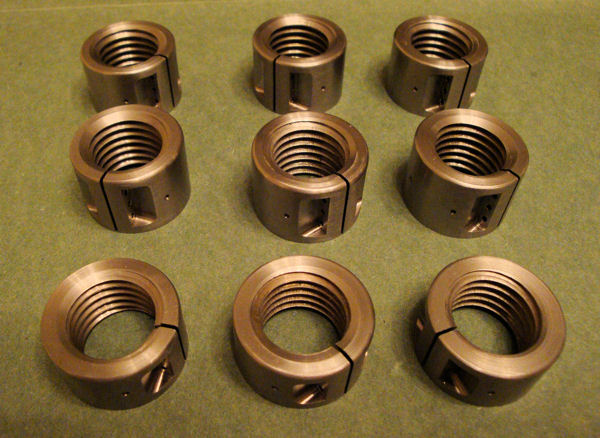

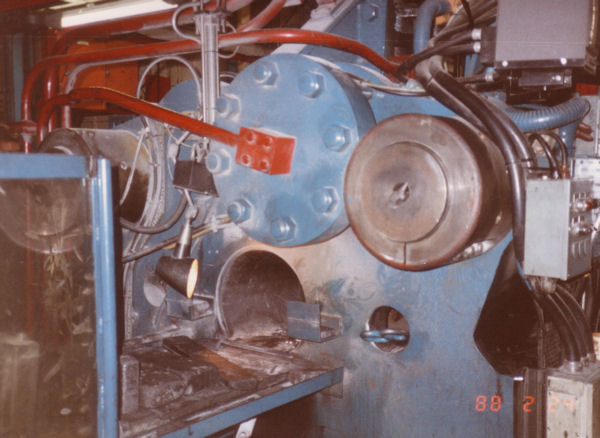

These nine tie rod nuts have taken three weekends to complete, I have included the drawing and a picture of the actual nuts. The larger model nuts at 1/12 scale weigh 80 grams each so the real thing would weigh 12 * 12 * 12 * 80g =138Kg so I have modeled over a tonne of steel saying it like that three weekends is not so bad. The next thing is 24 10BA * 5/8 bolts and nuts to clamp them. PS the tie rods do not yet exist.

extrusion press

extrusion press

extrusion press

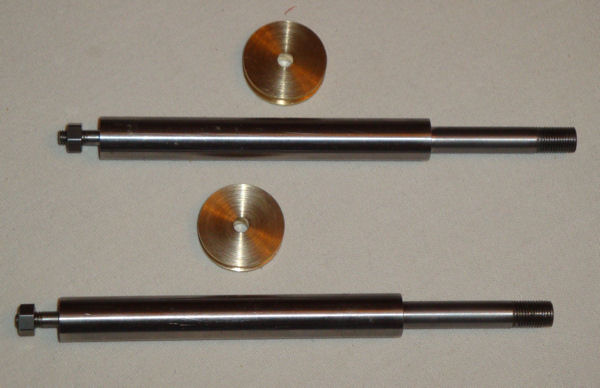

11-01-11 Been out in the workshop again made the container pistons and rods

extrusion press

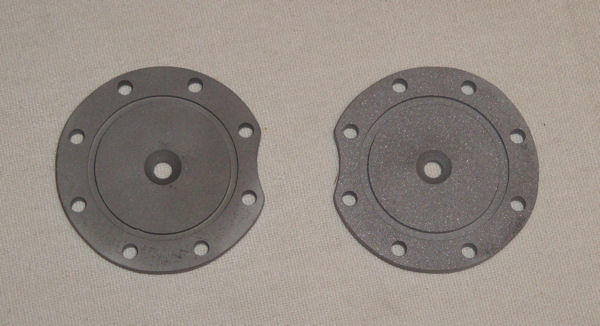

01-01-11 Made the container cylinder ends and prepared ready for painting the one on the left was grit blasted using 190 grit the one on the right using 80 grit I will see which paints up the better

extrusion press

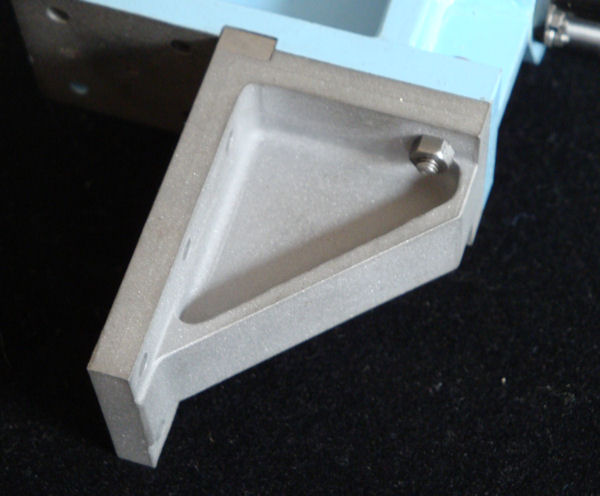

To make this model casting I have machined the shape from solid then masking the areas to remain machined grit blasted the rest to try to simulate a cast finish 14-11-10

extrusion press

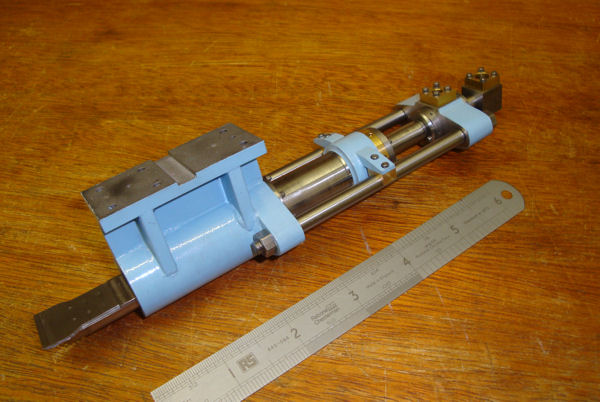

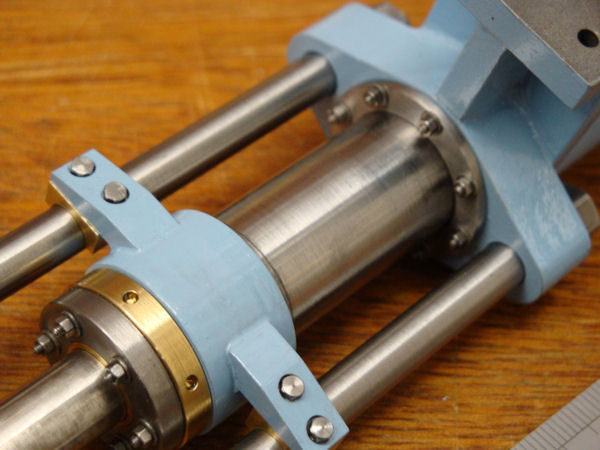

Shear Compleat

extrusion press

extrusion press

extrusion press

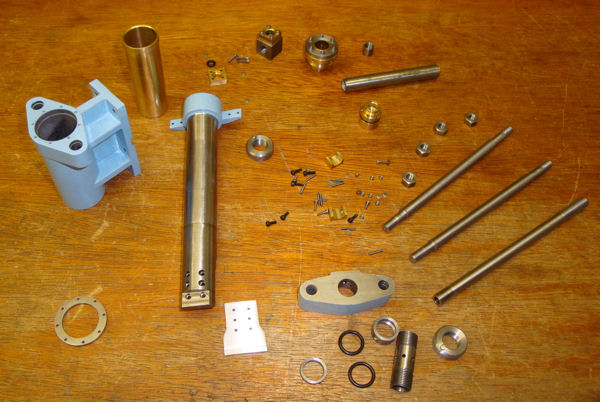

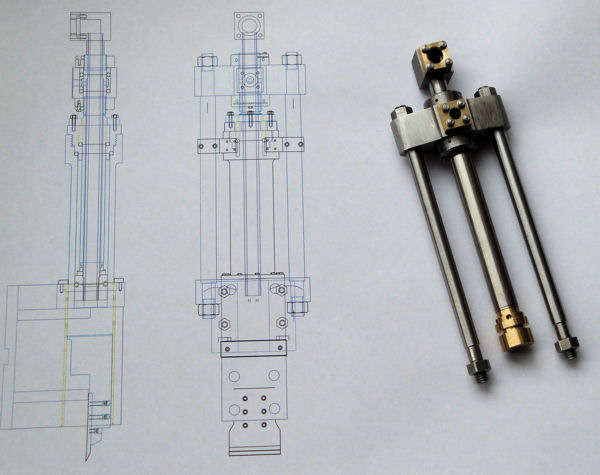

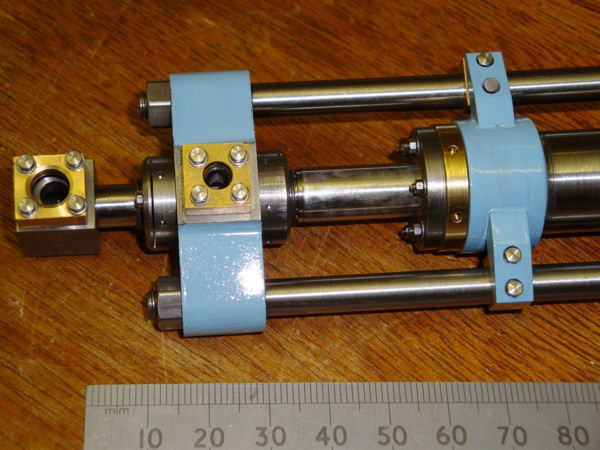

Butt Shear Parts 12/09/10

extrusion press

Butt Shear Drawing 04/07/10

extrusion press

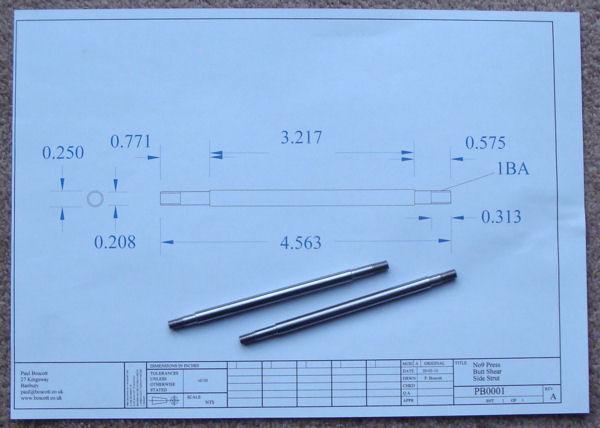

First Part Shear side strut 21/03/10
