Twin Swish Plate Stirling Engine

extrusion press
Home


Photos
Documents
Drawings
Photos of Model
Press Specification
Production Cycle
News Cuttings
Acknowledgements

Wanted
Previous Models
Links to youtube
Stirling Engine


stirling engine

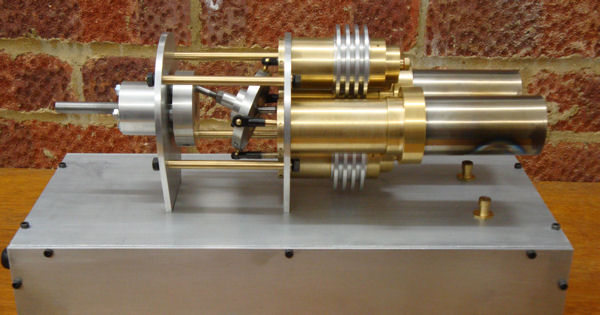

Twin Stirling Engine

I have now produced 2 assembly drawings,a complete set of 26 detailed parts drawings and build notes for this engine see sample at bottom of page

These are available :-

On A4 paper for 20 GBP free postage for UK

A 6Mb pdf file by email 12 GBP

A set of dxf files by email 15 GBP

Select type of Drawing Set
Twin Stirling Engine On YouTube Open in a new View

stirling engine

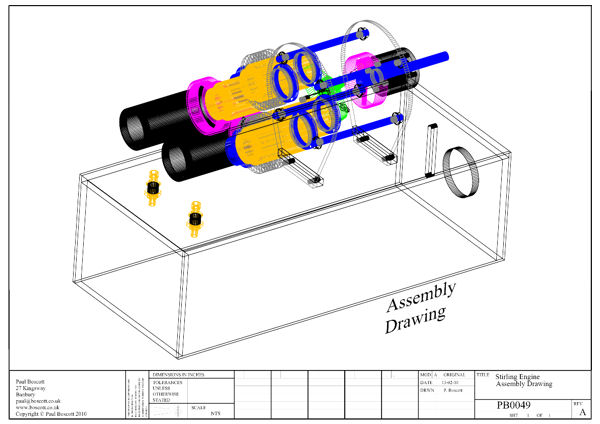

Assembly Drawing

stirling engine

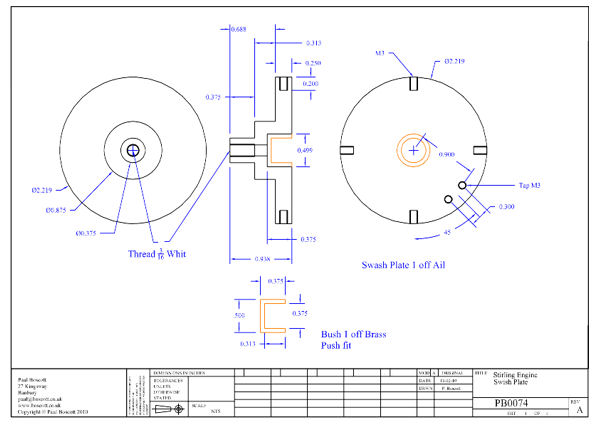

Part Drawing

I will answer questions about the construction of this engine by email to all purchasers of the drawing set
